OEM IML Cup Family Mould

Home / Product / Package Mould / IML Mould / IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould
  • IML Cup Family Mould

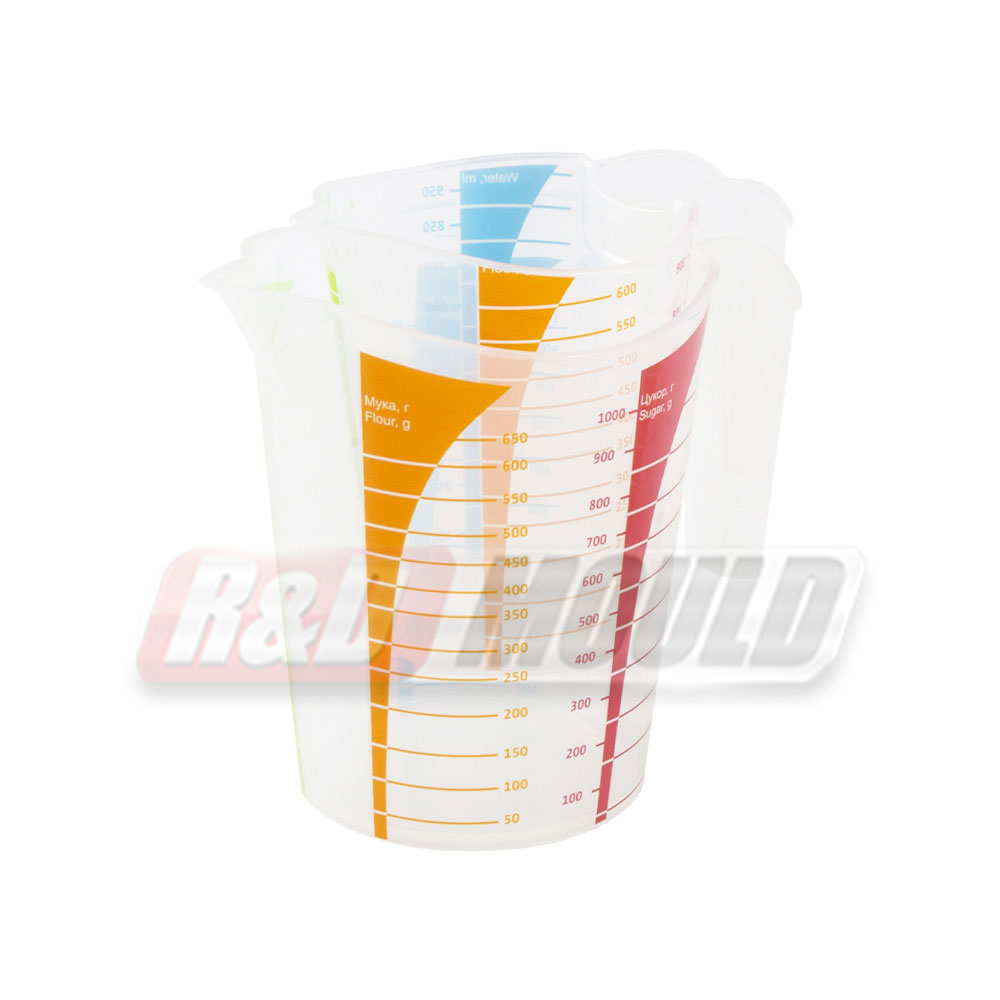

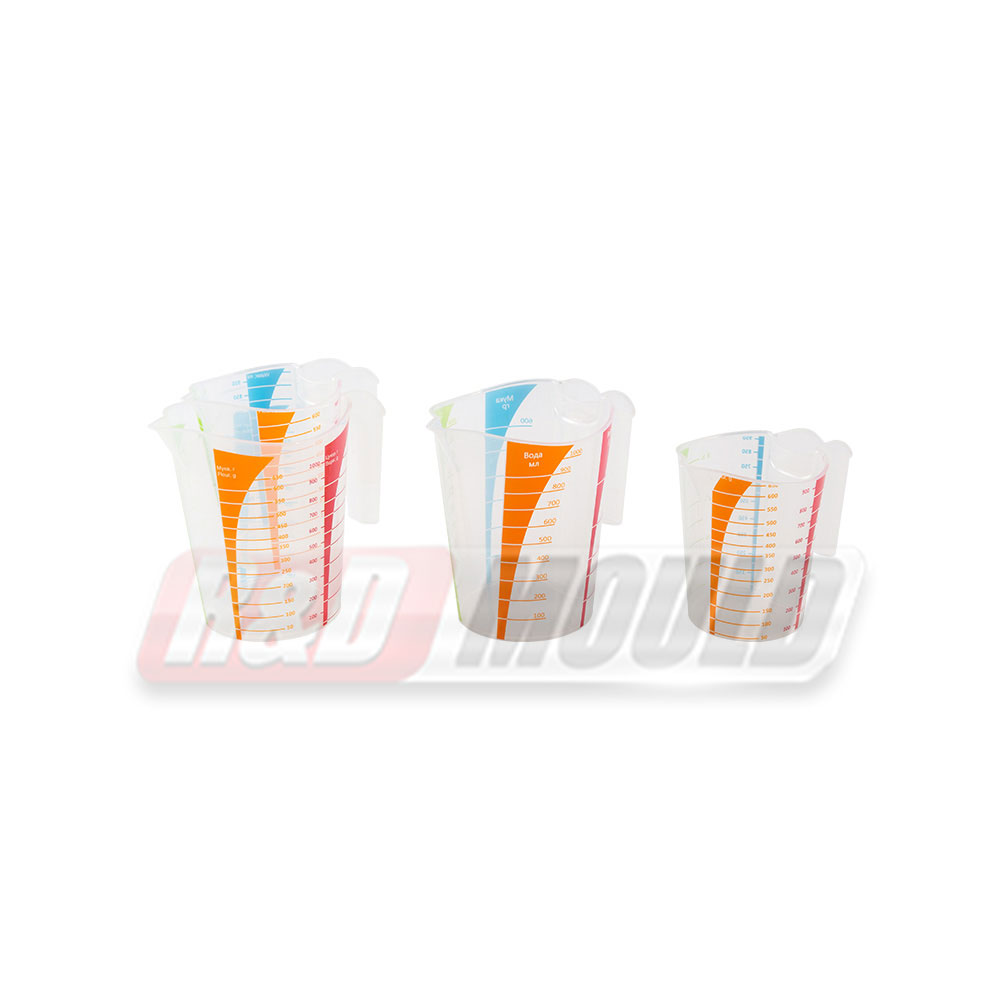

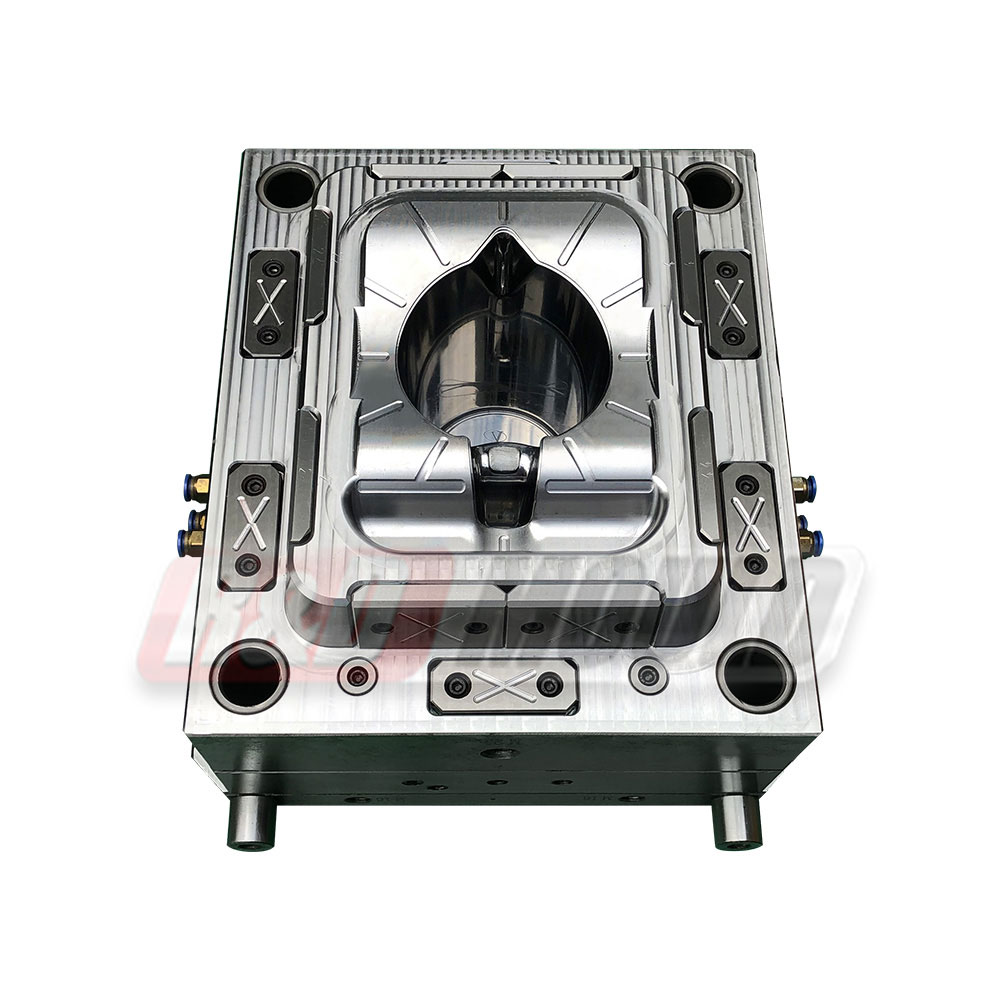

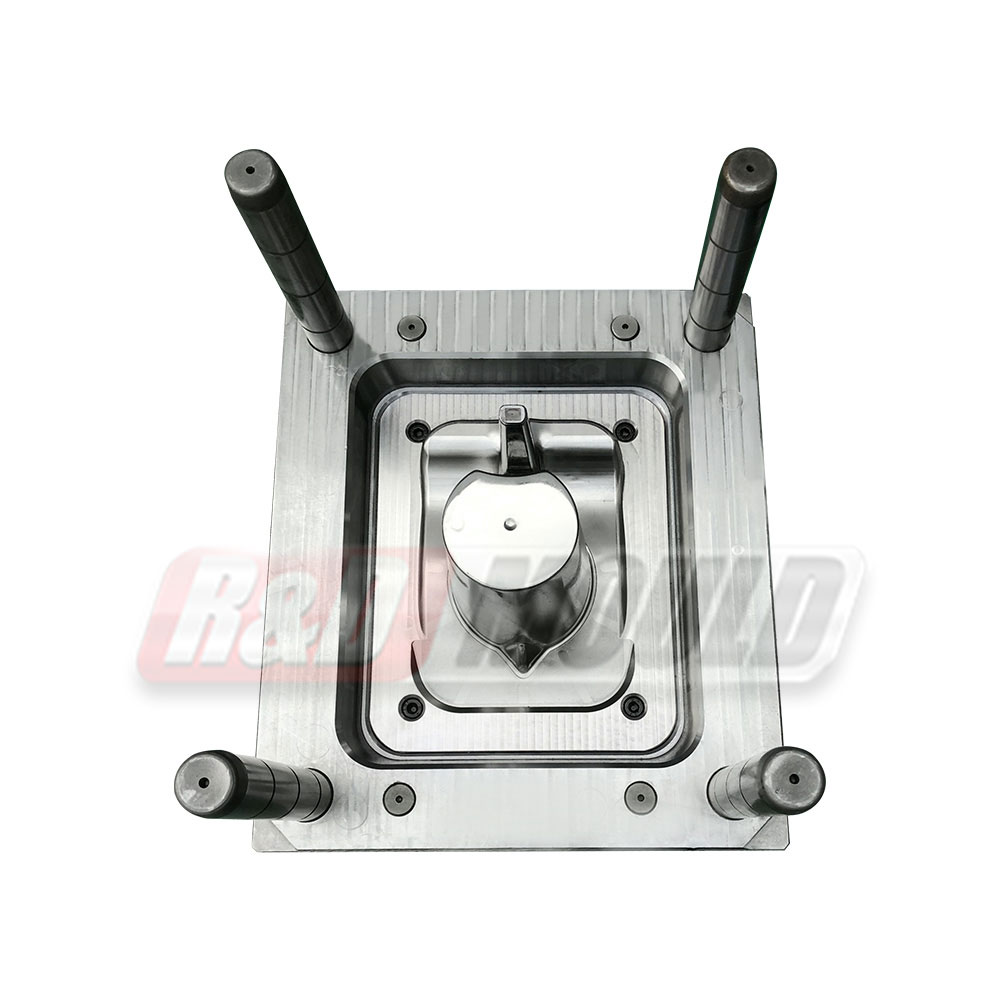

IML Cup Family Mould

Mold Name IML Cup Family Mould
Plastic Material PP Transparent
Mold Cavity/Core Steel 738H  HRC36-40
Runner /Gate System Hot Runner
Manufacture Time (Day) 45 Days
Mold Life 500,000 Shots
Machine Size 170Ton
Demolding Full Automatic
Contact Us
  • Description
  • Feedback
  • IML Cup Family Mould
    With more than 15 years' IML mould making experience, R&D Mould will offer you the best design for reasonable arrangement of gate and the best cooling for IMl mould. We guarantee you competitive price, high quality and prompt delivery. We have won a good reputation from customers around the world.
    Advantage
    1.Complete processing equipment
    2.Experienced mould designer and engineers
    3.Hign strength of the mould
    4.Best cooling
    5.Excellent polishing
    6.Even flow for the IML  mould
    7.Excellent after-sale service
    8.Effective communication
    9.Promot delivery
    10.Competitive mould price
    Mould Packaging Details
    1.Outside package: standard export wooden case;
    2. Inner package: We apply anticorrosive oil on the surface of the mould, and then cover it with plastic waterproof film.
    3. Spare parts are shipped together with moulds.

IML Cup Family Mould Maker, Foundry in China

  • CNC machining:

    After receiving UP from the programmer, the CNC operator performs the following operations:
    - Select suitable UP steel, as well as copper or graphite (electrode) billets for molding parts in the warehouse;
    - Set the workpiece on the NC table, display "0" and input the original data;
    - Load the required program into the machine and check all future details:
    Mould number, part number or copper electrode number (per part)
  • Electric pulse machining:

    The electrodes are sent from the inspection site to the polishing section, and then to the electric pulse processing section.
    The operator mounts the workpiece on an electric pulse machine,
    Set "0" and enter processing and setup procedures as needed
    Requirements: Avoid carbon deposition during electric pulse machining
    Fluid flow must be controlled. If necessary, during the process to check parts dimensions by using measuring tools or probes.
  • EDM:

    Machining various types of base, inserts, gaps, holes, forming tools in the EDM area. All these operations are carried out in accordance with the technical requirements of the drawings and continuous quality control.
  • Mould finishing and assembly:

    In the finishing assembly site, mold manufacturing process is completed. The mould worker carries on the fine processing and assembling for the mould forming parts, and prepares the mould for test. The qualifications of mould workers determine the quality of mould manufacturing and are mainly responsible for the reputation of the company. After all the processing, the production of the injection mould can be considered completed. IML Cup Family Injection Mould making is a high-tech processing. OEM/ODM optional.
