OEM SMC BMC GMT Mould

Home / Product / SMC BMC Mould / SMC BMC GMT Mould
  • SMC BMC GMT Mould
  • SMC BMC GMT Mould
  • SMC BMC GMT Mould
  • SMC BMC GMT Mould
  • SMC BMC GMT Mould
  • SMC BMC GMT Mould

SMC BMC GMT Mould

Contact Us
  • Description
  • Feedback
  • Compression Molds (SMC Mould, BMC Mould)

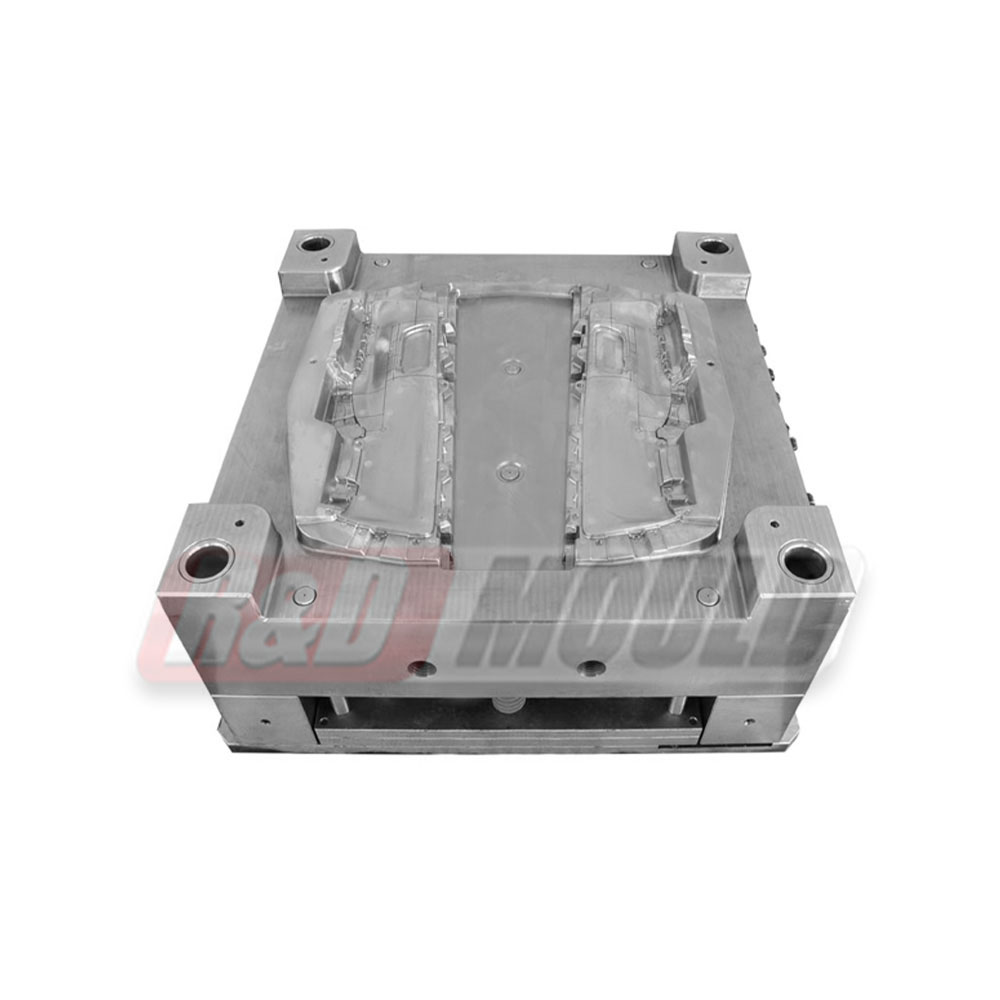

    The compression molding process is to put a certain amount of preheated molding material into the preheated mold, and apply a higher pressure to fill molding material into the mold cavity. Under predetermined temperature conditions, the molding material is gradually solidified, then take out SMC product from the mold, do auxiliary processing to obtain the final product.
    The material which placed into open mould are normally BMC (Bulk Molding Compounds) ,SMC (Sheet molding compound)etc . we always refer this type of compression mould to SMC mould, BMC mould
    For SMC Mold, Molding temperature and molding pressure affect the quality of SMC products, need to Comprehensive consideration of various influencing factors to determine the best machine parameters
    SMC Mold Advantage
    1.Since there is no pouring system, raw materials loss is small.
    2.The pressure of the plastic material in the cavity is relatively uniform, the flow distance generated by the pressure is short, deformation small, and the flow is multi-directional. Therefore, the internal stress of the product is very low to remain its shape.
    3.It is especially suitable for forming thin-walled products that cannot be warped, and can form larger flat makeup and pot-shaped products.
    SMC Mold Application
    1.SMC integral residence
    2.SMC seat
    3.SMC Manhole Cover

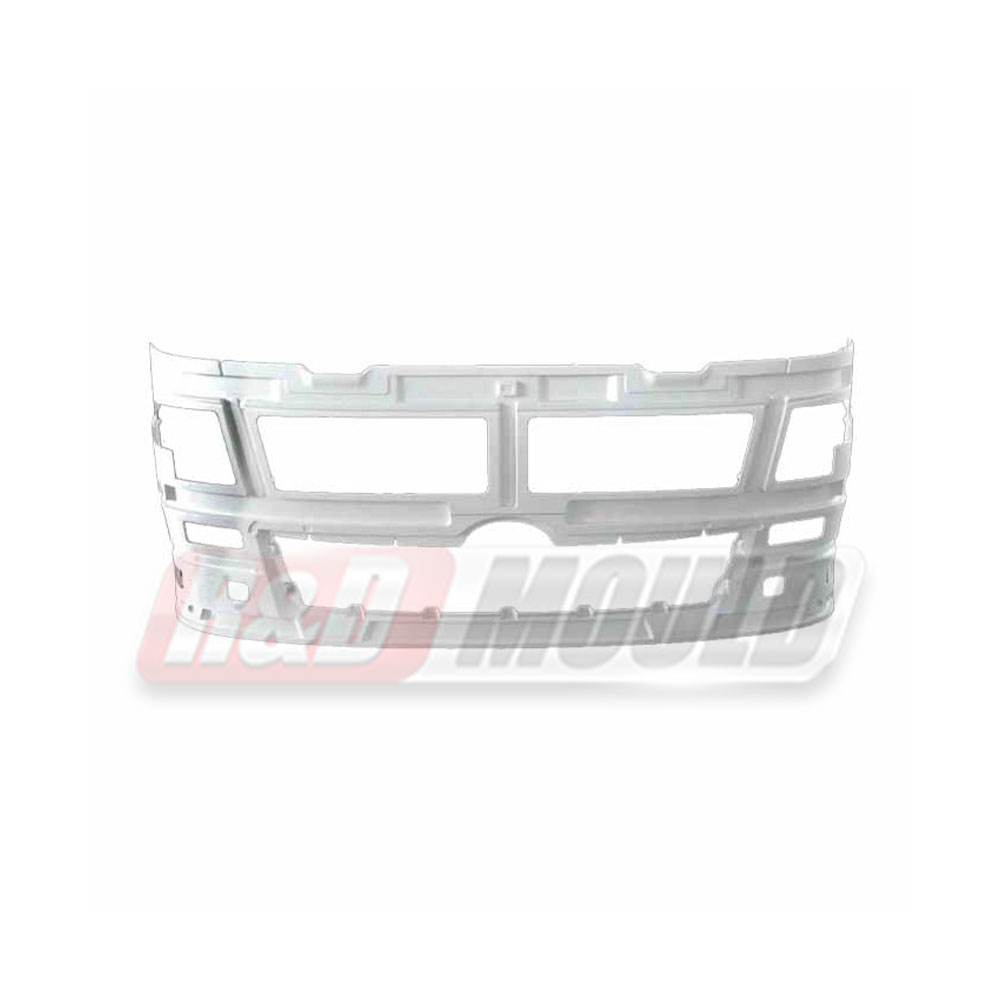

    4. SMC Auto parts(Bumper, car seat, front grille...)

SMC BMC GMT Mould Maker, Foundry in China

  • CNC machining:

    After receiving UP from the programmer, the CNC operator performs the following operations:
    - Select suitable UP steel, as well as copper or graphite (electrode) billets for molding parts in the warehouse;
    - Set the workpiece on the NC table, display "0" and input the original data;
    - Load the required program into the machine and check all future details:
    Mould number, part number or copper electrode number (per part)
  • Electric pulse machining:

    The electrodes are sent from the inspection site to the polishing section, and then to the electric pulse processing section.
    The operator mounts the workpiece on an electric pulse machine,
    Set "0" and enter processing and setup procedures as needed
    Requirements: Avoid carbon deposition during electric pulse machining
    Fluid flow must be controlled. If necessary, during the process to check parts dimensions by using measuring tools or probes.
  • EDM:

    Machining various types of base, inserts, gaps, holes, forming tools in the EDM area. All these operations are carried out in accordance with the technical requirements of the drawings and continuous quality control.
  • Mould finishing and assembly:

    In the finishing assembly site, mold manufacturing process is completed. The mould worker carries on the fine processing and assembling for the mould forming parts, and prepares the mould for test. The qualifications of mould workers determine the quality of mould manufacturing and are mainly responsible for the reputation of the company. After all the processing, the production of the injection mould can be considered completed. SMC BMC GMT Injection Mould making is a high-tech processing. OEM/ODM optional.
